1CBM load haul dump machines with hydrostatic pump and motor /
underground mining machinery
ROXMECH-1A Internal Combustion Scraper, powered by diesel engine, is a kind of front loading and unloading scraper with rubber wheels, hinged, front bucket. The machine utilizes static hydraulic-mechanical transmission, four-wheel drive, central articulation of front and rear frames, full hydraulic steering and other advanced technologies. It can be loaded, transported and unloaded independently by single person, suitable for method of mining and slag for roadway excavation such as stage caving method, empty field method, room-column method, ore-retaining method, stratified filling method, etc. The required running clearance can not be less than 2.4x2.4m. The machine has characteristics of compact structure, convenient operation, flexible maneuvering, low operating cost and high efficiency. Using low-pollution engine from Duetz, along with external secondary purification device, it generates low exhaust. It is a kind of high energy efficient equipment for small and medium-sized underground mine or underground engineering.
Main technical performance and parameters
| 1. Bucket volume | 1m3 |
| 2. Rated load | 2000kg |
| 3. Max. traction: | 60kN |
| 4. Maximum scooping force | 60kN |
| 5. Driving speed: | 0～9.5 km/h (bidirectional) |
| 6. Minimum ground clearance: | 195mm |
| 7. Rear axle swing angle: | ±6.5° |
| 8. Maximum steering angle: | ±38° |
| 9. Minimum turning radius: | 4120mm(outer flank) |
| 10.Maximum unloading height: | 1000mm |
| 1l. Wheelbase: | 1880mm |
| 12. Departure angle: | 15° |
| 13. Shovel depth: | 670mm |
| 14. Total Weight: | 6780kg |
| 15. Maximum climbing ability: | ≤25％ |
| 16. Dimensions: | Length | 5564mm(Transportation) |
| Width | 1405mm |
| Height | 1920mm |
| 17. Specifications of Tires | 10.00—20 |
| Pressure | 0.6～0.7MPa |
| 18. Rated power of internal combustion engine | 66kW |
| Rated rotating speed | 2300 r/min |
| 19. Transmission type | Hydrostatic mechanical transmission |
| Hydraulic pump | Fully reversible piston pump |
| Hydraulic motor | Variable displacement piston motor |
| Type of the transfer case: | Fixed shaft helical gear transmission |
| Deceleration ratio | 2.643 |
| Deceleration ratio of the drive axle | 25.868 |
| 20. braking system | Clamp type |
| Working brake: | hydraulic release |
| Parking brake | spring brake |
| 21.Steering device and hydraulic system | Central articulated full hydraulic steering |
| Steering Pump | shared pump with working oil pump |
| volume | 16 ml/r |
| rated pressure of the system | 12.5MPa |
| 22.Working device and hydraulic system | |
| Working oil pump displacement | 50 ml/r |
| Rated pressure of the s system | 16MPa |
| 23. volume of the driving oil tank | 120L |
| 24. volume of the working oil tank | 120L |
| 25. Volume of the fuel tank: | 60L |

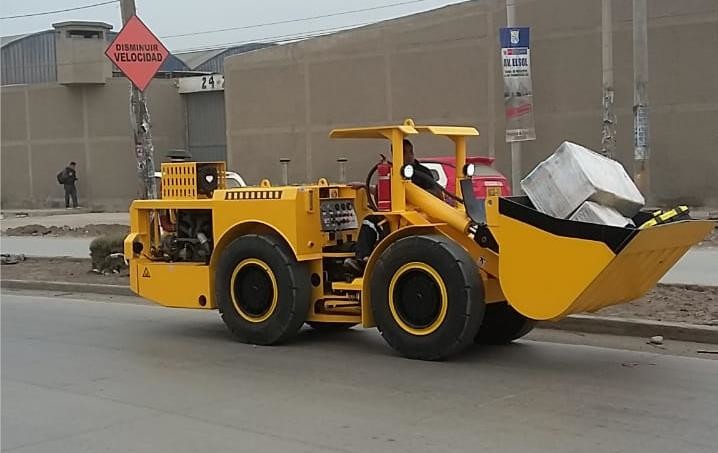

Our products are in Peru
